EEG Cups and EEG Discs

The Electrode Store has many EEG cups to fit every budget: Disposable EEG cup electrodes, re-usable EEG cups (discs), EEG discs, disposable sticky hydrogel electrodes with wires attached, extensions, gold-plated & silver EEG cups, and more.



Compare reusable and disposable EEG cups

Compare electrode material, cup diameter, lead arrangement and package quantity when selecting EEG cups.

Series Cup material and diameter Format Package quantity
SH Series 10 mm die-cast pure silver, 99.9%+ Reusable, attached leads 10 cups
GH Series 10 mm, 24K gold plating over solid die-cast silver Reusable, attached leads 10 cups
CUP Series 10 mm silver/silver chloride (Ag/AgCl) Disposable, attached leads; non-sterile 25 cups
WBT-DSC 10 mm Ag/AgCl-coated plastic Disposable cups with separately purchased reusable leads 100 cups


What distinguishes TES’s SH and GH cups?

Our SH and GH cups have a smooth, tumbled finish and an opening for electrolyte application. SH cups are made from die-cast pure silver; GH cups have 24K gold plating over the die-cast silver cup. Both series come in sets of 10 with different lead colors, a choice of lead lengths and standard 1.5 mm touch-proof safety sockets.



Which EEG cups require separate leads?

WBT-DSC disposable cups require WBT-DSAF reusable leads, sold separately. WBT-DSAF leads are 48 inches long and supplied in sets of 10 colors.

CUP Series disposable cups include attached leads, with 1-meter and 2-meter options. Choose the required lead length on the product page.

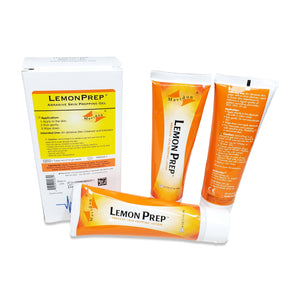

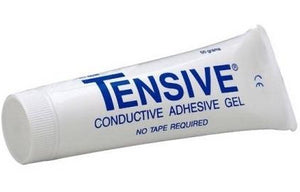

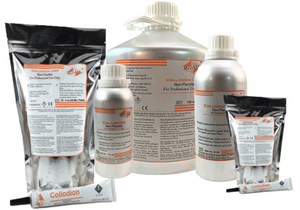

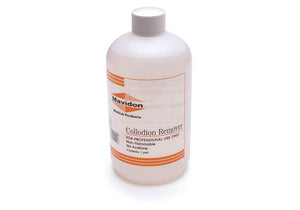

Find conductive pastes, skin preparation supplies, and collodion and remover for your electrode setup.
